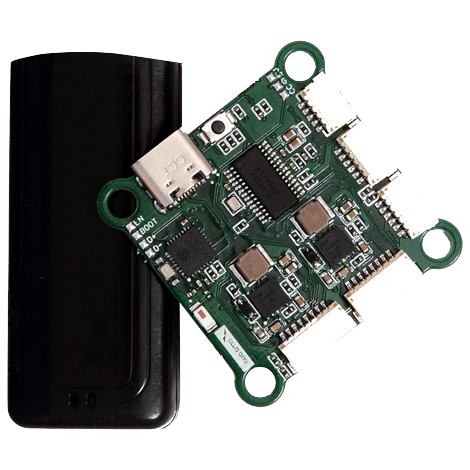

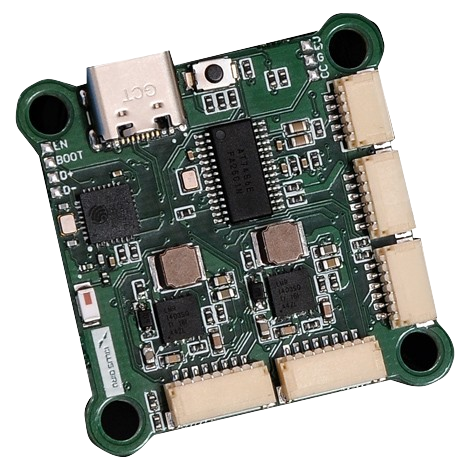

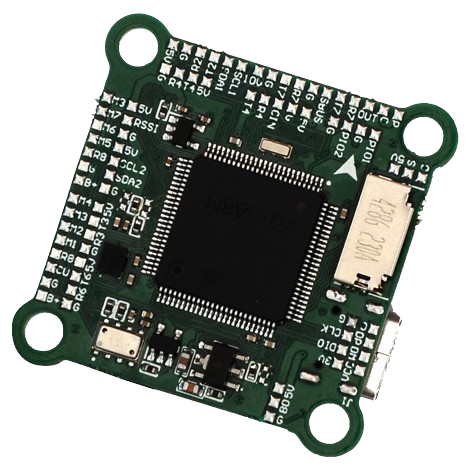

Flight Control Card
This advanced flight control card is engineered for next-generation UAVs requiring ultra-fast processing, precise sensor integration, and robust expandability — all within a compact footprint. Built around the powerful STM32H743 microcontroller, it delivers exceptional computational performance for real-time control, stabilization, and navigation.
- High-Speed Control Loop Execution Powered by the STM32H743 MCU (480 MHz), enabling ultra-fast and deterministic flight control algorithms for maximum responsiveness and stability.
- Precision Navigation Sensors Integrated ICM42688 IMU (6-axis gyro + accelerometer) and MS5611 barometric pressure sensor ensure high-fidelity attitude and altitude measurements, essential for GPS-denied environments.
- Integrated OSD (On-Screen Display) Inbuilt OSD chip allows real-time telemetry overlay on FPV feeds, providing pilots with critical flight data without the need for additional hardware.
- Versatile Motor Output Support Supports up to 8 motor outputs, compatible with multirotor, fixed-wing, and hybrid UAV platforms.
- Extensive Peripheral Connectivity
- 5x UART ports for GPS, telemetry, receiver, or other serial peripherals
- 2x I²C buses for sensors and external modules
- High-Speed Data Logging MicroSD card slot for blackbox logging at high data rates — ideal for tuning, diagnostics, and autonomous development.
- USB Type-C Interface Modern, durable connector for convenient programming, configuration, and firmware updates.
- Compact and Lightweight Only 36×36 mm, ideal for space-constrained designs without compromising on performance.
